Figma connector

1. Install the SDK

   Node.js

   npm install @scalekit-sdk/node

   Python

   pip install scalekit

   Full SDK reference: Node.js | Python

2. Set your credentials

   Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

   .env

   SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
   SCALEKIT_CLIENT_ID=<your-client-id>
   SCALEKIT_CLIENT_SECRET=<your-client-secret>

3. Set up the connector

   Register your Figma credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

   Dashboard setup steps

   Register your Figma app credentials with Scalekit so it can manage the OAuth 2.0 authentication flow and token lifecycle on your behalf. You’ll need a Client ID and Client Secret from the Figma Developers portal.

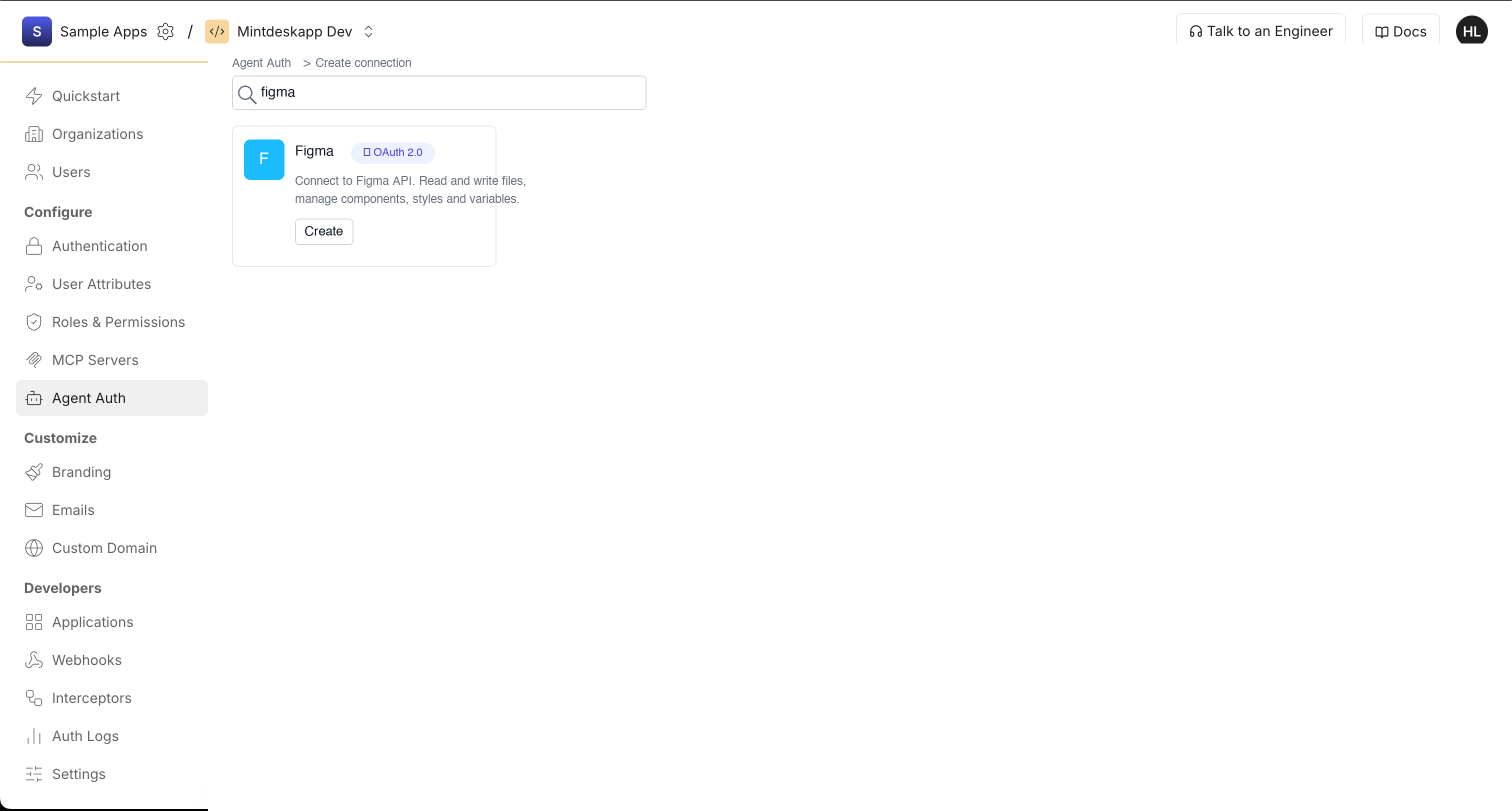

   1. Create a Figma connection in Scalekit

      • In Scalekit dashboard, go to AgentKit > Connections > Create Connection. Search for Figma and click Create.

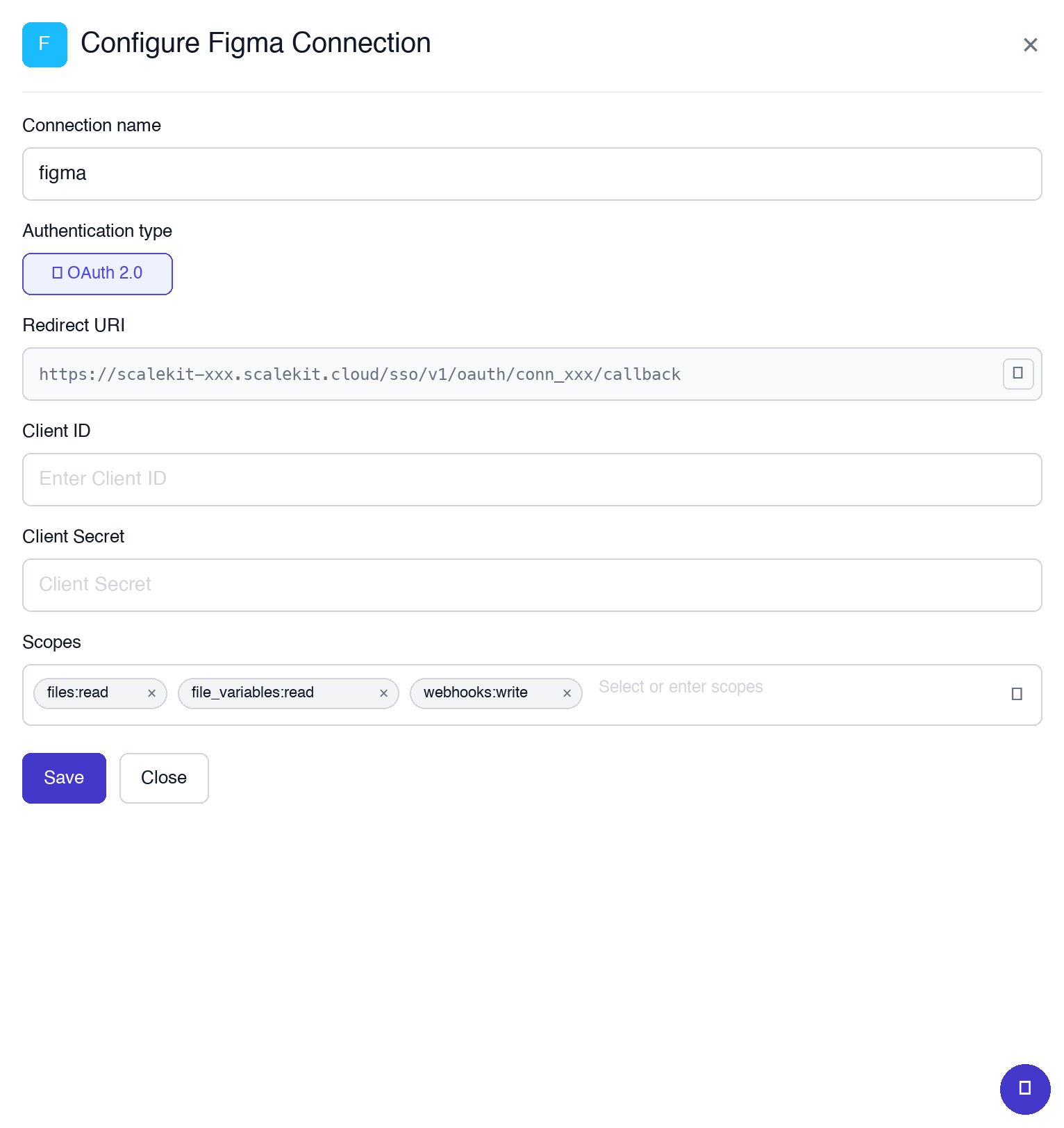

      • In the Configure Figma Connection panel, copy the Redirect URI. It looks like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback. You’ll paste this into Figma in the next step.

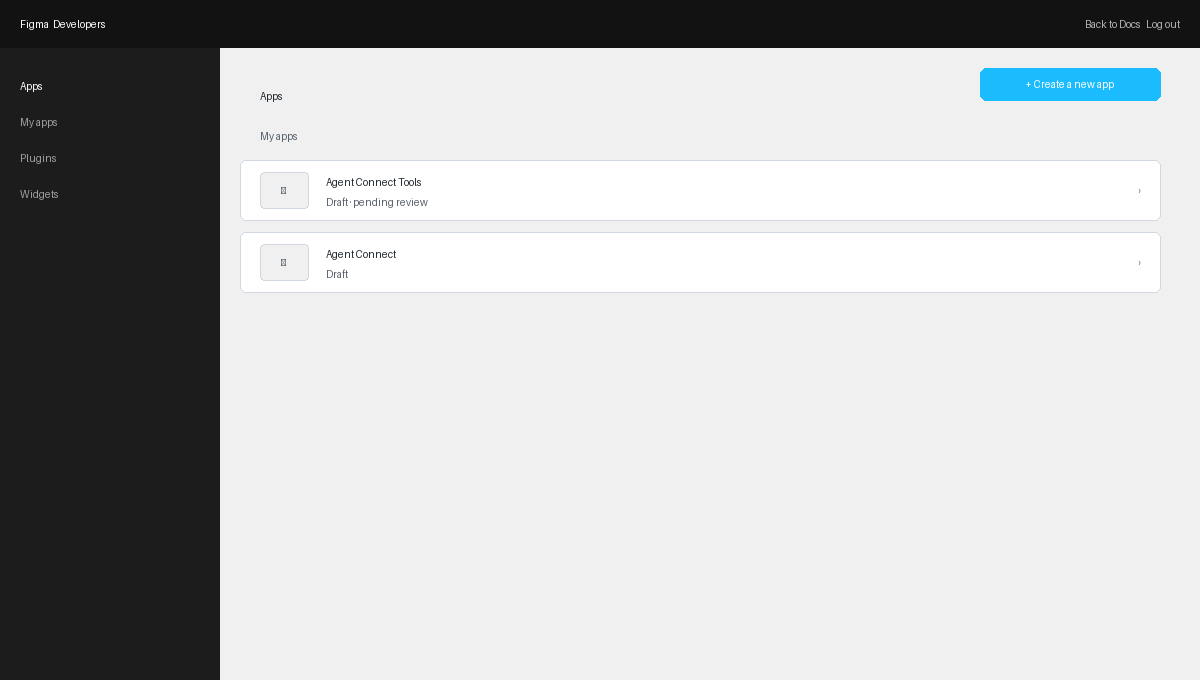

   2. Create an app in the Figma Developers portal

      • Go to the Figma Developers portal and sign in. Click + Create a new app.



      • Fill in your app name and description, then click Save.

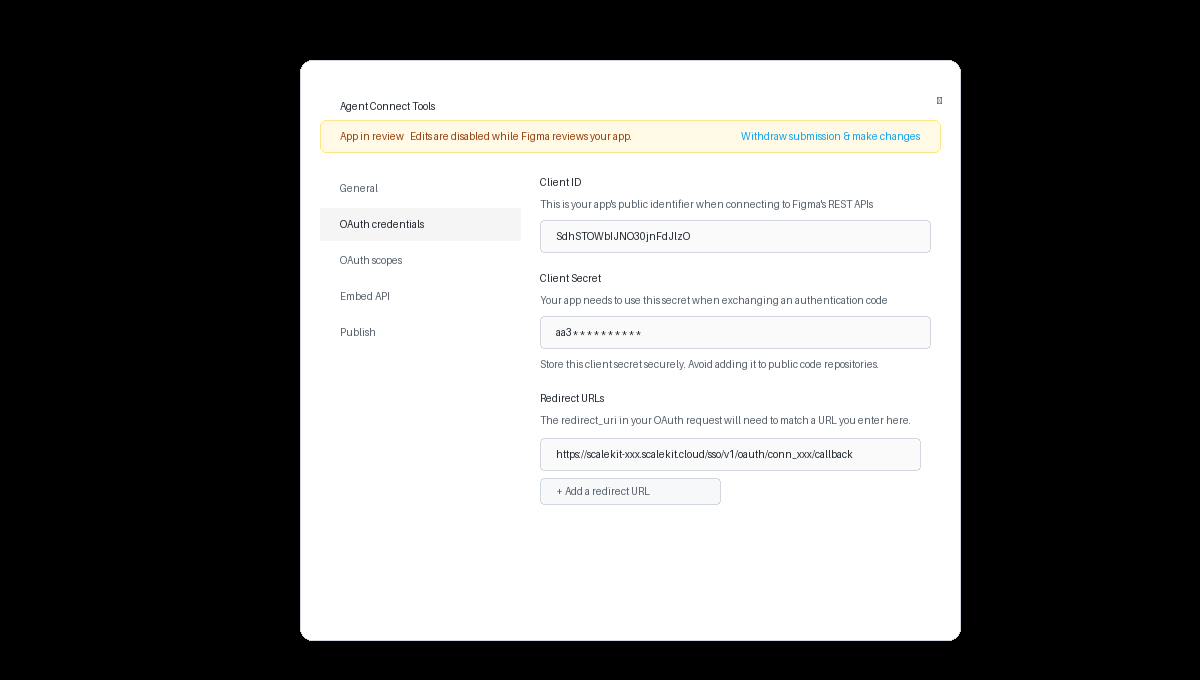

   3. Add the redirect URI and copy credentials

      • Open your app and click the OAuth credentials tab.

      • Under Redirect URLs, click Add a redirect URL and paste the Redirect URI you copied from Scalekit.

      • Copy the Client ID from the same tab.

      • Copy the Client Secret. Store it securely — never commit it to source control.



      Client secret is shown once

      The Client Secret is masked after the initial creation. If you lose it, you must generate a new one in the Figma app settings.

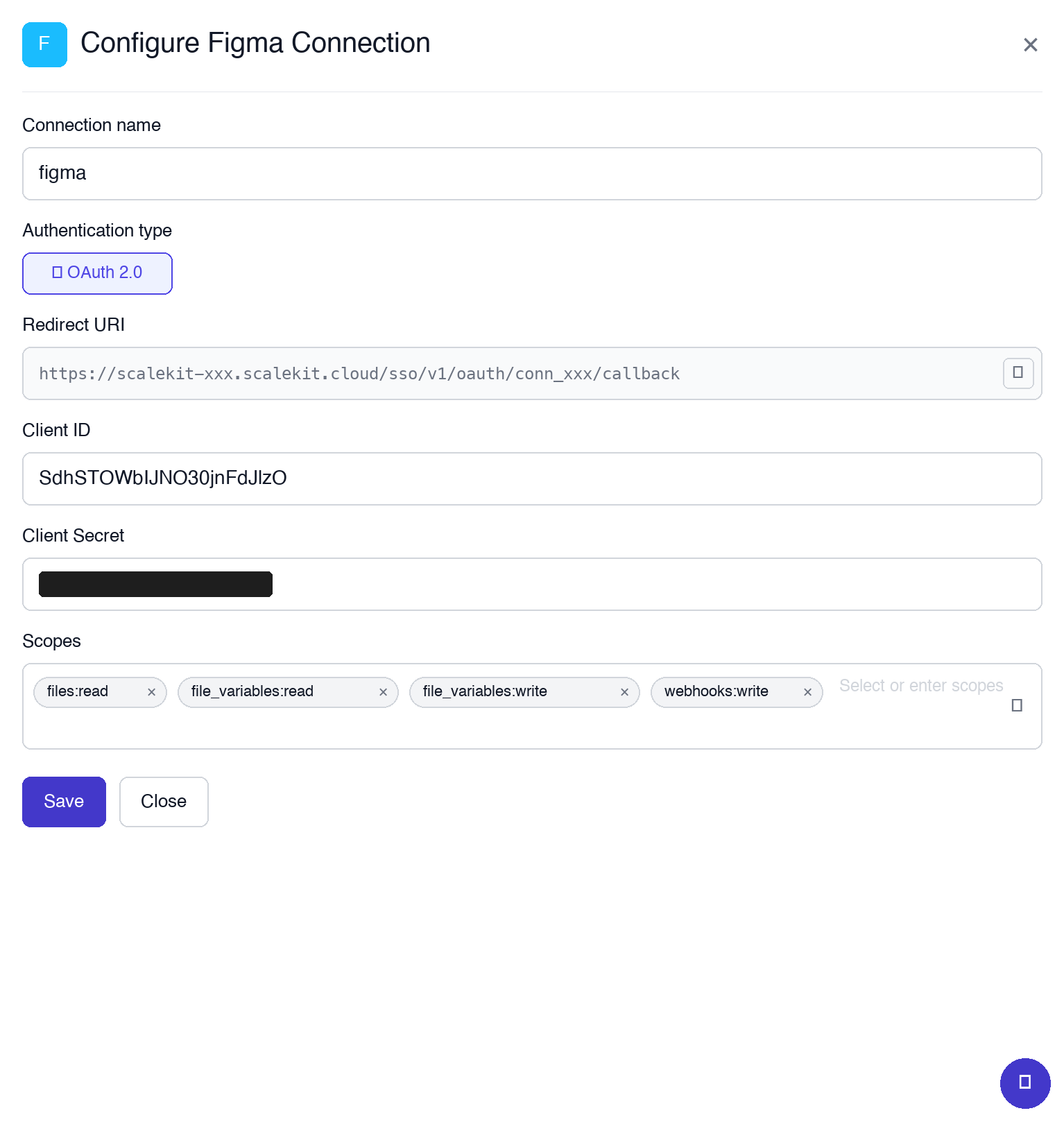

   4. Add credentials in Scalekit

      • In Scalekit dashboard, go to AgentKit > Connections and open the Figma connection you created.

      • Enter your credentials:

        • Client ID — from the Figma OAuth credentials tab
        • Client Secret — copied in the previous step
        • Scopes — select the permissions your app needs:
          • files:read — read files, nodes, images, components, and styles
          • file_variables:read — read local and published variables
          • file_variables:write — create, update, and delete variables
          • webhooks:write — create, update, and delete team webhooks



      • Click Save.

4. Authorize and make your first call

   Node.js

   quickstart.ts

   import { ScalekitClient } from '@scalekit-sdk/node'
   import 'dotenv/config'

   const scalekit = new ScalekitClient(
     process.env.SCALEKIT_ENV_URL,
     process.env.SCALEKIT_CLIENT_ID,
     process.env.SCALEKIT_CLIENT_SECRET,
   )
   const actions = scalekit.actions

   const connector = 'figma'
   const identifier = 'user_123'

   // Generate an authorization link for the user
   const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
   console.log('Authorize Figma:', link)
   process.stdout.write('Press Enter after authorizing...')
   await new Promise(r => process.stdin.once('data', r))

   // Make your first call
   const result = await actions.executeTool({
     connector,
     identifier,
     toolName: 'figma_activity_logs_list',
     toolInput: {},
   })
   console.log(result)

   Python

   quickstart.py

   import os
   from scalekit.client import ScalekitClient
   from dotenv import load_dotenv
   load_dotenv()

   scalekit_client = ScalekitClient(
       env_url=os.getenv("SCALEKIT_ENV_URL"),
       client_id=os.getenv("SCALEKIT_CLIENT_ID"),
       client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
   )
   actions = scalekit_client.actions

   connection_name = "figma"
   identifier = "user_123"

   # Generate an authorization link for the user
   link_response = actions.get_authorization_link(
       connection_name=connection_name,
       identifier=identifier,
   )
   print("Authorize Figma:", link_response.link)
   input("Press Enter after authorizing...")

   # Make your first call
   result = actions.execute_tool(
       tool_input={},
       tool_name="figma_activity_logs_list",
       connection_name=connection_name,
       identifier=identifier,
   )
   print(result)

What you can do

Connect this agent connector to let your agent:

• Get project meta, webhook, file variables local — Retrieve metadata for a Figma project by its project ID
• Delete comment reaction, dev resource, file comment — Removes the authenticated user’s emoji reaction from a comment in a Figma file
• List file components, file component sets, file styles — Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails
• Create file comment, webhook, comment reaction — Posts a new comment on a Figma file
• Update file variables, webhook, dev resource — Create, update, or delete variables, variable collections, and modes in a Figma file
• Render file images — Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns URLs to download them

Common workflows

Proxy API call

Node.js

const me = await actions.request({
  connectionName: 'figma',
  identifier: 'user_123',
  path: '/v1/me',
  method: 'GET',
});
console.log('Authenticated user:', me);

// Example: fetch a file's document tree
const file = await actions.request({
  connectionName: 'figma',
  identifier: 'user_123',
  path: '/v1/files/YOUR_FILE_KEY',
  method: 'GET',
});
console.log('File:', file);

Python

me = actions.request(
    connection_name='figma',
    identifier='user_123',
    path="/v1/me",
    method="GET",
)
print("Authenticated user:", me)

# Example: fetch a file's document tree
file = actions.request(
    connection_name='figma',
    identifier='user_123',
    path="/v1/files/YOUR_FILE_KEY",
    method="GET",
)
print("File:", file)

Execute a tool

Node.js

const result = await actions.executeTool({
  connector: 'figma',
  identifier: 'user_123',
  toolName: 'figma_activity_logs_list',
  toolInput: {},
});
console.log(result);

Python

result = actions.execute_tool(
    connection_name='figma',
    identifier='user_123',
    tool_name='figma_activity_logs_list',
    tool_input={},
)
print(result)

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

figma_activity_logs_list#Returns activity log events for an organization (Enterprise only). Includes events for file edits, permissions changes, and user actions.6 params▾

Returns activity log events for an organization (Enterprise only). Includes events for file edits, permissions changes, and user actions.

NameTypeRequiredDescription

cursorstringoptionalPagination cursor from the previous response to fetch the next batch of events.

end_timeintegeroptionalUnix timestamp (seconds) to stop fetching events at.

eventsstringoptionalComma-separated event types to filter. All returned by default.

limitintegeroptionalMaximum number of events to return (1-1000, default 100).

orderstringoptionalSort order: asc or desc by timestamp. Default is desc.

start_timeintegeroptionalUnix timestamp (seconds) to start fetching events from.

figma_comment_reaction_create#Adds an emoji reaction to a comment in a Figma file.3 params▾

Adds an emoji reaction to a comment in a Figma file.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to react to.

emojistringrequiredThe emoji to react with (e.g. ':thumbsup:').

file_keystringrequiredThe unique key of the Figma file.

figma_comment_reaction_delete#Removes the authenticated user's emoji reaction from a comment in a Figma file.3 params▾

Removes the authenticated user's emoji reaction from a comment in a Figma file.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to remove reaction from.

emojistringrequiredThe emoji reaction to remove (e.g. ':thumbsup:').

file_keystringrequiredThe unique key of the Figma file.

figma_comment_reactions_list#Returns a list of emoji reactions on a specific comment in a Figma file.3 params▾

Returns a list of emoji reactions on a specific comment in a Figma file.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to get reactions for.

file_keystringrequiredThe unique key of the Figma file.

cursorstringoptionalPagination cursor for next page of results.

figma_component_get#Returns metadata for a published component by its key, including name, description, thumbnail, and containing file information.1 param▾

Returns metadata for a published component by its key, including name, description, thumbnail, and containing file information.

NameTypeRequiredDescription

keystringrequiredThe unique key of the component.

figma_component_set_get#Returns metadata for a published component set (a group of related component variants) by its key.1 param▾

Returns metadata for a published component set (a group of related component variants) by its key.

NameTypeRequiredDescription

keystringrequiredThe unique key of the component set.

figma_dev_resource_create#Creates a dev resource (external link) attached to a node in a Figma file, such as a link to Storybook, Jira, or documentation.4 params▾

Creates a dev resource (external link) attached to a node in a Figma file, such as a link to Storybook, Jira, or documentation.

NameTypeRequiredDescription

file_keystringrequiredThe key of the Figma file containing the target node.

namestringrequiredDisplay name for the dev resource link.

node_idstringrequiredThe ID of the node to attach the dev resource to.

urlstringrequiredThe URL of the external resource.

figma_dev_resource_delete#Permanently deletes a dev resource from a node in a Figma file.2 params▾

Permanently deletes a dev resource from a node in a Figma file.

NameTypeRequiredDescription

dev_resource_idstringrequiredThe ID of the dev resource to delete.

file_keystringrequiredThe key of the Figma file containing the dev resource.

figma_dev_resource_update#Updates an existing dev resource attached to a node in a Figma file.3 params▾

Updates an existing dev resource attached to a node in a Figma file.

NameTypeRequiredDescription

dev_resource_idstringrequiredThe ID of the dev resource to update.

namestringoptionalNew display name for the dev resource.

urlstringoptionalNew URL for the dev resource.

figma_dev_resources_list#Returns dev resources (links to external tools like Storybook, Jira, etc.) attached to nodes in a Figma file.2 params▾

Returns dev resources (links to external tools like Storybook, Jira, etc.) attached to nodes in a Figma file.

NameTypeRequiredDescription

file_keystringrequiredThe key of the Figma file to get dev resources for.

node_idsstringoptionalComma-separated node IDs to filter by. Omit to return all dev resources in the file.

figma_file_comment_create#Posts a new comment on a Figma file. Can be placed at a specific canvas position or anchored to a specific node.4 params▾

Posts a new comment on a Figma file. Can be placed at a specific canvas position or anchored to a specific node.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

messagestringrequiredThe text content of the comment.

client_metastringoptionalJSON string specifying position or node anchor for the comment, e.g. {"node_id":"1:2","node_offset":{"x":0,"y":0}}.

comment_idstringoptionalThe ID of the comment to reply to. If provided, this creates a reply to that comment.

figma_file_comment_delete#Deletes a specific comment from a Figma file. Only the comment author or file owner can delete a comment.2 params▾

Deletes a specific comment from a Figma file. Only the comment author or file owner can delete a comment.

NameTypeRequiredDescription

comment_idstringrequiredThe ID of the comment to delete.

file_keystringrequiredThe unique key of the Figma file.

figma_file_comments_list#Returns all comments left on a Figma file, including their text, author, position, and resolved status.2 params▾

Returns all comments left on a Figma file, including their text, author, position, and resolved status.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

as_mdbooleanoptionalIf true, returns comment text as Markdown.

figma_file_component_sets_list#Returns all published component sets in a Figma file.1 param▾

Returns all published component sets in a Figma file.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

figma_file_components_list#Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails.1 param▾

Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

figma_file_get#Returns a Figma file's full document tree including all nodes, components, styles, and metadata.7 params▾

Returns a Figma file's full document tree including all nodes, components, styles, and metadata.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file (found in the file URL).

branch_databooleanoptionalInclude data on branches of the file.

depthintegeroptionalDepth of the document tree to return (1-4). Lower depth returns faster.

geometrystringoptionalSet to "paths" to export vector path data.

idsstringoptionalComma-separated node IDs to fetch.

plugin_datastringoptionalPlugin IDs to return plugin data for.

versionstringoptionalA specific version ID to get. Omit to get the current version.

figma_file_image_fills_get#Returns download URLs for all image fills used in a Figma file. Image fills are images that have been applied as fills to nodes.1 param▾

Returns download URLs for all image fills used in a Figma file. Image fills are images that have been applied as fills to nodes.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

figma_file_images_render#Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns URLs to download them.11 params▾

Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns URLs to download them.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

idsstringrequiredComma-separated list of node IDs to render.

contents_onlybooleanoptionalRender only node contents without background.

formatstringoptionalImage format: jpg, png, svg, or pdf. Default is png.

scalenumberoptionalImage scale factor (0.01 to 4). Default is 1.

svg_include_idbooleanoptionalInclude id attributes on SVG elements.

svg_include_node_idbooleanoptionalInclude node_id attributes on SVG elements.

svg_outline_textbooleanoptionalOutline all text in SVG output.

svg_simplify_strokebooleanoptionalSimplify stroke operations in SVG output.

use_absolute_boundsbooleanoptionalUse absolute bounding box for rendering.

versionstringoptionalA specific version ID to render from.

figma_file_nodes_get#Returns specific nodes from a Figma file by their node IDs, along with their children and associated styles and components.6 params▾

Returns specific nodes from a Figma file by their node IDs, along with their children and associated styles and components.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

idsstringrequiredComma-separated list of node IDs to retrieve.

depthintegeroptionalDepth of the document tree to return for each node.

geometrystringoptionalSet to "paths" to export vector path data.

plugin_datastringoptionalPlugin IDs to return plugin data for.

versionstringoptionalA specific version ID to fetch nodes from.

figma_file_styles_list#Returns all published styles in a Figma file, including color, text, effect, and grid styles.1 param▾

Returns all published styles in a Figma file, including color, text, effect, and grid styles.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

figma_file_variables_local_get#Returns all local variables and variable collections defined in a Figma file. Requires the variables:read scope.1 param▾

Returns all local variables and variable collections defined in a Figma file. Requires the variables:read scope.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

figma_file_variables_published_get#Returns all published variables and variable collections from a Figma file's library. Requires the variables:read scope.1 param▾

Returns all published variables and variable collections from a Figma file's library. Requires the variables:read scope.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

figma_file_variables_update#Create, update, or delete variables, variable collections, and modes in a Figma file. Enterprise plan only.7 params▾

Create, update, or delete variables, variable collections, and modes in a Figma file. Enterprise plan only.

NameTypeRequiredDescription

file_keystringrequiredThe file or branch key to update variables in.

schema_versionstringoptionalOptional schema version

tool_versionstringoptionalOptional tool version

variableCollectionsarrayoptionalVariable collections to create, update, or delete.

variableModesarrayoptionalVariable modes to create, update, or delete.

variableModeValuesarrayoptionalVariable mode values to set.

variablesarrayoptionalVariables to create, update, or delete.

figma_file_versions_list#Returns the version history of a Figma file, including version IDs, labels, descriptions, and creation timestamps.4 params▾

Returns the version history of a Figma file, including version IDs, labels, descriptions, and creation timestamps.

NameTypeRequiredDescription

file_keystringrequiredThe unique key of the Figma file.

afterstringoptionalReturn versions created after this version ID (for pagination).

beforestringoptionalReturn versions created before this version ID (for pagination).

page_sizeintegeroptionalNumber of versions to return per page.

figma_library_analytics_component_actions_get#Returns analytics data on component insertion, detachment, and usage actions from a library file. Enterprise only.5 params▾

Returns analytics data on component insertion, detachment, and usage actions from a library file. Enterprise only.

NameTypeRequiredDescription

file_keystringrequiredThe key of the library Figma file.

group_bystringrequiredDimension to group results by: component or team.

cursorstringoptionalPagination cursor from previous response.

end_datestringoptionalEnd date for analytics in YYYY-MM-DD format.

start_datestringoptionalStart date for analytics in YYYY-MM-DD format.

figma_library_analytics_component_usages_get#Returns a snapshot of how many times each component from a library is used across the organization. Enterprise only.3 params▾

Returns a snapshot of how many times each component from a library is used across the organization. Enterprise only.

NameTypeRequiredDescription

file_keystringrequiredThe key of the library Figma file.

group_bystringrequiredGroup analytics results by COMPONENT, TEAM, or FILE.

cursorstringoptionalPagination cursor from previous response.

figma_library_analytics_style_actions_get#Returns analytics data on style insertion and detachment actions from a library file. Enterprise only.5 params▾

Returns analytics data on style insertion and detachment actions from a library file. Enterprise only.

NameTypeRequiredDescription

file_keystringrequiredThe key of the library Figma file.

group_bystringrequiredDimension to group results by: style or team.

cursorstringoptionalPagination cursor from previous response.

end_datestringoptionalEnd date for analytics in YYYY-MM-DD format.

start_datestringoptionalStart date for analytics in YYYY-MM-DD format.

figma_library_analytics_style_usages_get#Returns a snapshot of how many times each style from a library is used across the organization. Enterprise only.3 params▾

Returns a snapshot of how many times each style from a library is used across the organization. Enterprise only.

NameTypeRequiredDescription

file_keystringrequiredThe key of the library Figma file.

group_bystringrequiredGroup analytics results by COMPONENT, TEAM, or FILE.

cursorstringoptionalPagination cursor from previous response.

figma_library_analytics_variable_actions_get#Returns analytics data on variable actions from a library file. Enterprise only.5 params▾

Returns analytics data on variable actions from a library file. Enterprise only.

NameTypeRequiredDescription

file_keystringrequiredThe key of the library Figma file.

group_bystringrequiredDimension to group results by: variable or team.

cursorstringoptionalPagination cursor from previous response.

end_datestringoptionalEnd date for analytics in YYYY-MM-DD format.

start_datestringoptionalStart date for analytics in YYYY-MM-DD format.

figma_library_analytics_variable_usages_get#Returns a snapshot of how many times each variable from a library is used across the organization. Enterprise only.3 params▾

Returns a snapshot of how many times each variable from a library is used across the organization. Enterprise only.

NameTypeRequiredDescription

file_keystringrequiredThe key of the library Figma file.

group_bystringrequiredGroup analytics results by COMPONENT, TEAM, or FILE.

cursorstringoptionalPagination cursor from previous response.

figma_me_get#Returns the authenticated user's information including name, email, and profile image URL.0 params▾

Returns the authenticated user's information including name, email, and profile image URL.

figma_payments_get#Returns payment and plan information for a Figma user or resource, including subscription status and plan type.3 params▾

Returns payment and plan information for a Figma user or resource, including subscription status and plan type.

NameTypeRequiredDescription

resource_idstringoptionalThe ID of the plugin or widget resource.

resource_typestringoptionalThe type of resource: plugin or widget.

user_idstringoptionalThe ID of the user to get payment info for.

figma_project_files_list#Returns all files in a Figma project, including file keys, names, thumbnails, and last modified timestamps.2 params▾

Returns all files in a Figma project, including file keys, names, thumbnails, and last modified timestamps.

NameTypeRequiredDescription

project_idstringrequiredThe ID of the Figma project.

branch_databooleanoptionalIf true, includes branch metadata for each file.

figma_project_meta_get#Retrieve metadata for a Figma project by its project ID.3 params▾

Retrieve metadata for a Figma project by its project ID.

NameTypeRequiredDescription

project_idstringrequiredThe ID of the project.

schema_versionstringoptionalOptional schema version

tool_versionstringoptionalOptional tool version

figma_style_get#Returns metadata for a published style by its key, including name, description, style type, and containing file information.1 param▾

Returns metadata for a published style by its key, including name, description, style type, and containing file information.

NameTypeRequiredDescription

keystringrequiredThe unique key of the style.

figma_team_component_sets_list#Returns all published component sets in a Figma team library, with pagination support.4 params▾

Returns all published component sets in a Figma team library, with pagination support.

NameTypeRequiredDescription

team_idstringrequiredThe ID of the Figma team.

afterintegeroptionalCursor for the next page of results.

beforeintegeroptionalCursor for the previous page of results.

page_sizeintegeroptionalNumber of component sets to return per page.

figma_team_components_list#Returns all published components in a Figma team library, with pagination support.4 params▾

Returns all published components in a Figma team library, with pagination support.

NameTypeRequiredDescription

team_idstringrequiredThe ID of the Figma team.

afterintegeroptionalCursor for the next page of results.

beforeintegeroptionalCursor for the previous page of results.

page_sizeintegeroptionalNumber of components to return per page.

figma_team_get#List all projects visible to the authenticated user within the specified Figma team.1 param▾

List all projects visible to the authenticated user within the specified Figma team.

NameTypeRequiredDescription

team_idstringrequiredThe ID of the Figma team.

figma_team_projects_list#Returns all projects within a Figma team that the authenticated user has access to.1 param▾

Returns all projects within a Figma team that the authenticated user has access to.

NameTypeRequiredDescription

team_idstringrequiredThe ID of the Figma team.

figma_team_styles_list#Returns all published styles in a Figma team library, with pagination support.4 params▾

Returns all published styles in a Figma team library, with pagination support.

NameTypeRequiredDescription

team_idstringrequiredThe ID of the Figma team.

afterintegeroptionalCursor for the next page of results.

beforeintegeroptionalCursor for the previous page of results.

page_sizeintegeroptionalNumber of styles to return per page.

figma_team_webhooks_list#Returns all webhooks registered for a Figma team.1 param▾

Returns all webhooks registered for a Figma team.

NameTypeRequiredDescription

team_idstringrequiredThe ID of the Figma team.

figma_webhook_create#Creates a new webhook that sends events to the specified endpoint URL when Figma events occur in a team.6 params▾

Creates a new webhook that sends events to the specified endpoint URL when Figma events occur in a team.

NameTypeRequiredDescription

endpointstringrequiredThe HTTPS URL to send webhook payloads to.

event_typestringrequiredThe event type to subscribe to: FILE_UPDATE, FILE_DELETE, FILE_VERSION_UPDATE, FILE_COMMENT, LIBRARY_PUBLISH.

passcodestringrequiredA passcode included in the webhook payload for verification.

team_idstringrequiredThe ID of the team to subscribe to events for.

descriptionstringoptionalOptional description for the webhook.

statusstringoptionalWebhook status: ACTIVE or PAUSED.

figma_webhook_delete#Permanently deletes a Figma webhook. This stops all future event deliveries for this webhook.1 param▾

Permanently deletes a Figma webhook. This stops all future event deliveries for this webhook.

NameTypeRequiredDescription

webhook_idstringrequiredThe ID of the webhook to delete.

figma_webhook_get#Returns details of a specific Figma webhook by its ID, including event type, endpoint, and status.1 param▾

Returns details of a specific Figma webhook by its ID, including event type, endpoint, and status.

NameTypeRequiredDescription

webhook_idstringrequiredThe ID of the webhook.

figma_webhook_requests_list#Returns the delivery history for a webhook, including request payloads, response codes, and timestamps.1 param▾

Returns the delivery history for a webhook, including request payloads, response codes, and timestamps.

NameTypeRequiredDescription

webhook_idstringrequiredThe ID of the webhook.

figma_webhook_update#Updates an existing Figma webhook's endpoint, passcode, status, or description.5 params▾

Updates an existing Figma webhook's endpoint, passcode, status, or description.

NameTypeRequiredDescription

webhook_idstringrequiredThe ID of the webhook to update.

descriptionstringoptionalUpdated description for the webhook.

endpointstringoptionalNew HTTPS URL to send webhook payloads to.

passcodestringoptionalNew passcode for webhook verification.

statusstringoptionalWebhook status: ACTIVE or PAUSED.
